Quick Introduction

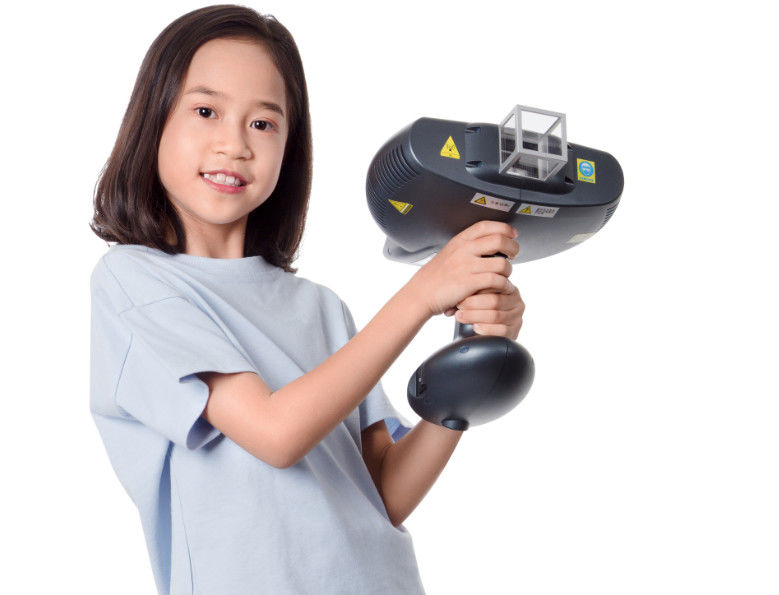

It can be used in children, as it is a relatively friendly–looking piece of equipment . Excimer 308-nm light is a form of targeted phototherapy that delivers a specific wavelength (308 nm) of ultraviolet B (UVB) radiation using an excimer laser or an excimer lamp. Both have shown similar results regarding efficacy, but have technical differences.
Excimer light treatment is a development of whole body narrowband UVB. Narrowband UVB delivers energy at a wavelength between 311–312 nm for the treatment of localised psoriasis and vitiligo. The disadvantages of narrowband UVB include irradiation of the whole body (even if the psoriasis is localised) and the need for a high number of treatments (usually between 15 and 40 sessions).
Treatment Principle
Cl atoms and Xe atoms in the sealed handpiece form the unstable XeCI excimer under the action of high frequency electric field, and this excimer is extremely unstable to naturally radiate 308nm single wavelength excimer light in the process of transferring from quasi-molecular state into atomic state, which is mainly used for psoriasis, vitiligo and other diseases treatment.
The irradiation intensity of 308 phototherapy apparatus is 35mW/cm2, 308 excimer power is 10 times bigger than a normal UVB lamp. the treatment time and cycle are much shorter.
Indication:
PsoriasisVitiligo
Atopic Dermatitis
Eczema
Leukodermao
And many others
Operation
1. Operator Wear the goggles
2. Check the instrument after turning on the power.
3. Install the handle cover
4. Calibration Enter calibration interface, do the calibration operation.
5.MED test For a new patient, no need MED test for re-visit patient.
6.Treatment Set an irradiation dose according to MED value, make the treatment probe close to the skin to treat.
P.S. the irradiation intensity of 308 phototherapy apparatus is 35mW/cm2, 308 excimer power is 10 times bigger than a normal UVB lamp. the treatment time and cycle are much shorter.
Specifications:
Lamp Type | Xecl Lamp |
Light wavelength | 308nm |
Optical Power Density | 30mW/cm2 ±20% |
Fluence | 30-4200mJ/cm2 |
Spot Size | Max. 16cm2 |
Treatment Time | 1s-140s |
Erythema Test Dose | 3s/6s/9s/12s/15s/18s/21s/24s/27s |
Work Mode | Continuous |
Demensions(LxWxH) | 27x24x26cm |
Power Requirement | 100-240V, 47-63Hz |
Packaged Dimensions | 43x34x46cm |
Gross Weight | 9kg |
FAQ
Q1: Are you a manufacturer?
Yes, we are a manufacturer for 13 years.
Q2. How do I purchase a 308nm Excimer System?
Click "Start Order " at any product link you want to purchase, after you make payment a 308nm Excimer System will be shilling to you directly from us. You can also send inquiry to our sales manager. We will help you to start a order at any time.
Q3. How often to use the 308nm Excimer System?
2-3 days per treatment.
Q4.How long until I see results?
By following the treatment guideline, typically you will have noticeable improvement in 3-10 treatments.
Q4. What payment term can be used?
Credit Card, Paypal, Bank transfer, Western Union
Q5. What's your production time for the bulk?
Normally, we have stock
